REFRIGERATION COMPONENTS

YCQB – YCQC – Pressure Sensors

- Applicable for HFC / HFO / HC and R744 - Output signal: 0.5-4.5V or 4-20mA - Accuracy: from ±0.8% FS - Electrical connections:Packard/Molex/ Hirschmann/Lead wires - Protection class: IP66 / IP67 - Various customizations on request

SYJ – Sight Glasses

- Design refrigerant: HFC, HFO, HC - Design pressure: 46bar - Connection sizes from 1/4” to 1-1/8” - Flare and solder connections - PTFE sealing - Full port passage with low pressure drop

STG – Filter Drier – Bi-Flow

- Design refrigerant: HFC, HFO, HC - Design pressure: 48,3 bar (STG-R 49 bar) - Connection sizes from 1/4” to 1-1/8” - Hybrid desiccant - 2 versions: - 100% 3Å desiccant - 80% 3Å desiccant and 20% active alumina - Durable and solid filter cores - Filtering fineness: 20μm - Corrosion resistant painting

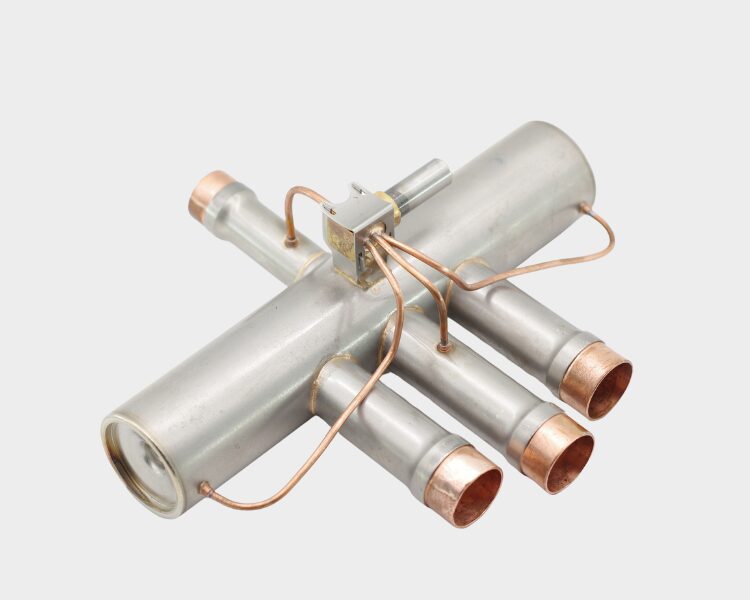

SHF – Reversing Valve-2

The DSF series 4-way reversing valve is applicable to all kinds of heat pump systems. It changes the flow path of refrigerants by controlling the pilot valve to switch the mode between cooling and heating

SHF – Reversing Valve

SBV – Ball Valves

RFKH – Expansion Valve

RFGB – Expansion Valve

PS01-50-15 – Pressure Controls

- Compact dimensions - High precision and excellent stability - Long lifetime with excellent reliability - SPDT switch to ensure fast reactions - Extended pressure range option 8÷42 bar

MDF – Solenoid Valve

- Design refrigerant: HFC, HFO, HC - Design pressure: 45 bar - Kv values from 0.16 up to 25.0 m3/h - Max OPD: 31 bar (with AC coils) - Min OPD: from 0 bar to 0.2 bar - Solder ODF connections sizes from 1/4” to 2” 1/8 - Normally open models on request

FDF – NO – Solenoid Valve

FDF – NC – Solenoid Valve

- Design refrigerant: HFC, HFO, HC - Design pressure: 45 bar - Kv values from 1.9 up to 3.5 m3/h - Medium temperature TS min./max.: -30°C / +120°C - Ambient temperature min./max.: -30°C / +50°C - 15 sizes available with solder ODF connections: sizes from 1/4” to 5/8” - Angle shape (90°) or straight shape available

DTG – Filter Driers

- Design refrigerant: HFC, HFO, HC - Design pressure: 48,3 bar - Connection sizes from 1/4” to 1/2” - Fully hermetic stainless-steel housing - Solid filer cores with 100% 3Å desiccant - Compact design, meeting 150g system limits - Unidirectional flow

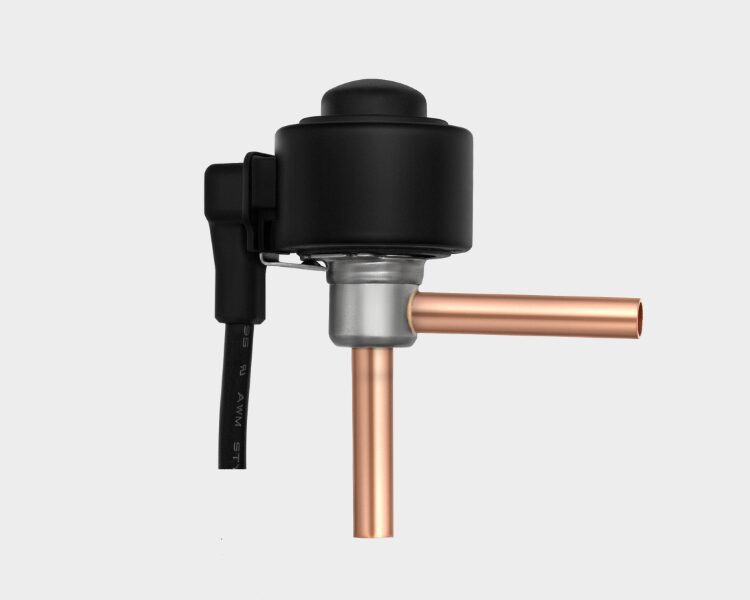

DPF-TS – Expansion Valve Electronic

- Design refrigerant: HFC, HFO, HC - Design pressure: 49 bar - Cooling capacity: 4 to 35 kW (for R290) - Uni-polar stepper motor - 500 steps (full stroke) - Bidirectional flow - Optimized flow path design for noise reduction - Fast operation, energy saving
